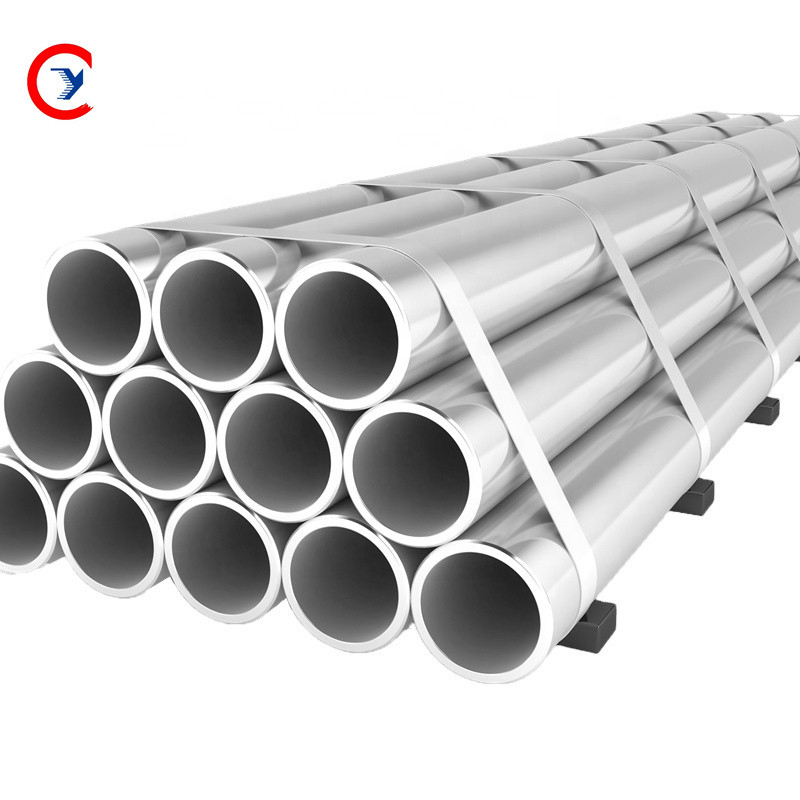

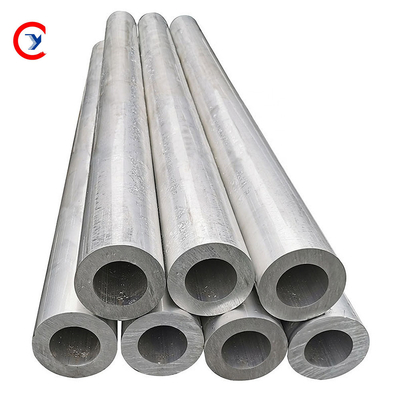

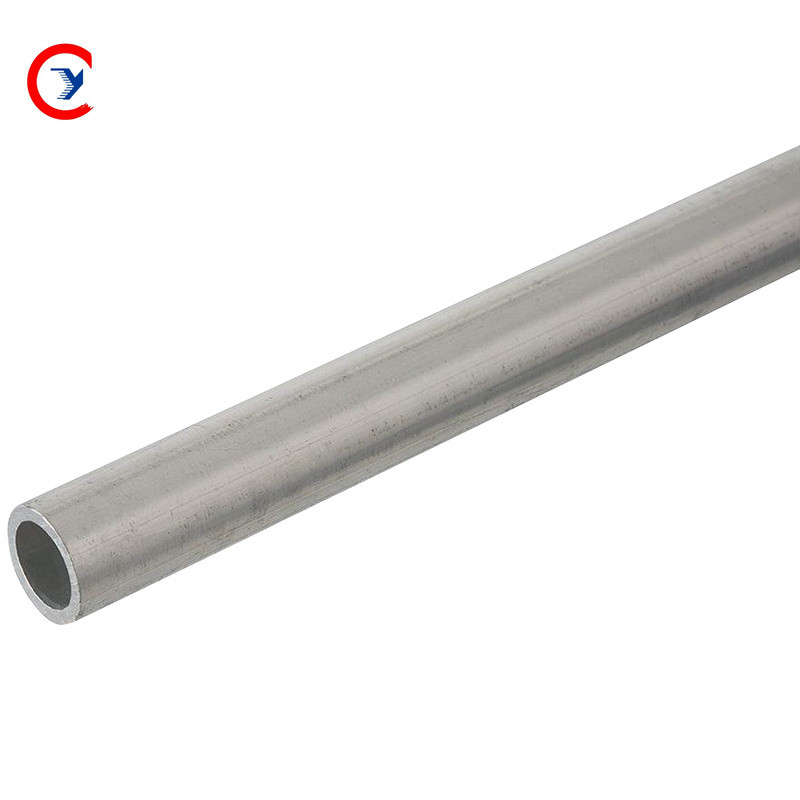

5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless

  • 5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless
  • 5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless
  • 5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless
Place of Origin Wuxi, Jiangsu,China
Brand Name Chengyue Metal Materials
Certification ISO9001 CE ROHS
Model Number 5A06
Minimum Order Quantity ≥2.5 ton
Price $1950/ton-$2150/ton
Packaging Details Wooden pallet according the sea standard
Delivery Time 7-18 days
Payment Terms D/A, T/T, Western Union, MoneyGram
Supply Ability 2000 ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Aluminium Round Tube Surface Customers't Requirement
Thickness 0.5 - 8 Mm Technique Hot Rolled,Seamless
Standard ASTM,GB,JIS,BS,API Outer Diameter(round) 15 - 610 Mm
High Light

Aluminum alloy extruded tubes

,

5A06 Aluminum alloy tubes

,

O H112 Seamless Aluminum alloy tubes
Leave a Message
Product Description
Product Paramenters
Model
Aluminium Tube/Aluminum round Pipe/Aluminum Square Tube/Aluminum Rectangular Tube
Material Grade
1000 series: 1050, 1060, 1070, 1080, 1100, 1435, etc
2000 series: 2011, 2014, 2017, 2024, etc
3000 series: 3002, 3003, 3104, 3204, 3030, etc
5000 series: 5005, 5025, 5040, 5056, 5083, etc
6000 series: 6101, 6003, 6061, 6063, 6020, 6201, 6262, 6082, etc
7000 series: 7003, 7005, 7050, 7075, etc
Size
Outer Diameter: 3-250mm
Wall Thickness: 0.3-50mm
Length: 10mm-6000mm
Standards
ASTM, ASME, EN, JIS, DIN, GB/T, etc
Surface treatment
Mill finished, anodized, powder coating, Sand blast, etc
Surface colors
Nature, silver, bronze, champagne, black, gloden, etc
As customized
Status
T4 T5 T6 or other special status
Usage
aluminum profile for windows/doors/decoration/construction/curtain wall
Quality
China Nation Standard GB/T
Packing
Protective film+plastic film or EPE+kraft paper
Certificate
ISO 9001 2008
MOQ
1 tons. Usuall 12 tons for a 20 feet contaner; 24 tons for a 40 feet container.
Press Machine
500-4000 tons all together 64 press lines
Moulding
1. Using our moulds, no fee;
2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free;
3. Can be diguessed.

Remark:

1.5A06 is a high magnesium alloy with good strength, corrosion resistance and machinability among non-heat treatment alloys. Beautiful surface after anodizing. Good arc welding performance. The main alloying element in 5A06 alloy is magnesium, which has good corrosion resistance and weldability, as well as moderate strength.



2.5A06 belongs to Al-Mg alloy, which is widely used, especially in the construction industry, it is a promising alloy. Good corrosion resistance, excellent weldability, good cold workability, and moderate strength.



3.Excellent corrosion resistance makes 5A06 alloy widely used in aerospace, military and automobile, aircraft welding parts, metro light rail, strict fire containers (such as liquid tank cars, refrigerated trucks, refrigerated containers), refrigeration devices, TV tower, drilling equipment, transportation equipment, parts, fixture, armor, etc.




Factory Produced
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 0
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 1
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 2







Product Display



5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 3
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 4



Round Tube
Square Tube
Outer Diameter
Width x Height
3
21
42
97
4*6
10*35
15*20
20*55
25*45
30*190
4
21.3
44.5
100
5*8
10*40
15*25
20*60
25*50
35*40
5
22
45
101
5*10
10*45
15*30
20*70
25*60
35*45
6
22.2
48
102
5*12
10*50
15*40
20*80
25*70
35*50
7
23
48.3
103
5*15
10*60
15*45
20*90
25*75
35*60
7.5
24
48.6
105
5*20
10*70
15*50
20*100
25*80
35*90
8
25
50
106
5*25
10*80
15*60
20*120
25*90
35*130
9
25.4
50.8
108
5*30
10*90
15*70
20*125
25*100
35*180
9.5
26
51
113
5*40
10*100
15*75
20*130
25*125
40*45
10
27
53
114
5*50
10*110
15*80
20*135
25*135
40*50
11
28
54
114
5*60
10*125
15*85
20*140
25*140
40*60
12
30
55
127
6*12
11*38
15*90
20*145
25*200
40*70
12.7
31.8
57
133
6.8*38
11*43
15*95
20*150
30M0
40*80
13
32
60
140
8*12
12*20
15*100
20*155
30M5
40*100
14
33.4
63
141
8*15
12*32
15" 05
20*160
30*50
40*120
14.5
33.6
63.5
152
8*16
12*35
15*110
20*165
30*60
40*130
15
33.7
66
154
8*20
12*58
15*120
20*170
30*70
40*140
15.88
34
67
159
8*22
12*60
15*125
20*175
30*80
40*150
16
35
70
168
8*30
12*68
18*28
20*180
30*90
40*160
17
35.5
76
182
8*32
12*78
18*32
20*185
30*100
40*170
18
36
76.2
190
8.7*16
12*98
20*25
20*190
30*120
40*180
19
38
80
203
9*17
13*22
20*30
20*200
30*130
40*200
19.1
38.1
88
219
10*15
13*25
20*35
22*33
30*140
50*60
19.5
40
89
273
10*20
13*35
20*40
25*30
30*150
50*70
20
41
90
323
10*25
13*38
20*45
25*35
30*170
50*80
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 5
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 6

Product packaging
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 7
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 8
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 9



Services & Applications
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 10
5A06 Aluminum Alloy Extruded Tubes Temper O H112 Seamless 11
Certifications
FAQ

1. Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with 1.5 million tons of aluminum annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to seeing and inspecting our factory

2. Q: Do you have quality control system?

A: Yes,we have iso,bv,sgs certifications and our own quality contorl laboratory.

3. Q: How long is your delivery time?

A: Within 7-15 days after receiving the deposit or L/C at sight. Longer lead time will be required for special designed products.
4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.
5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
