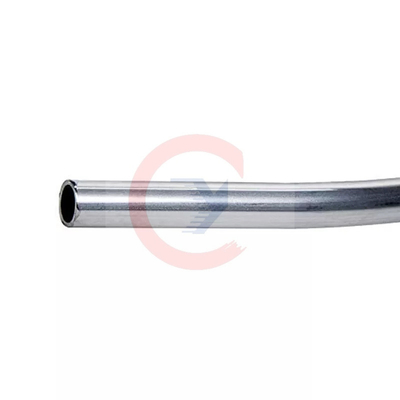

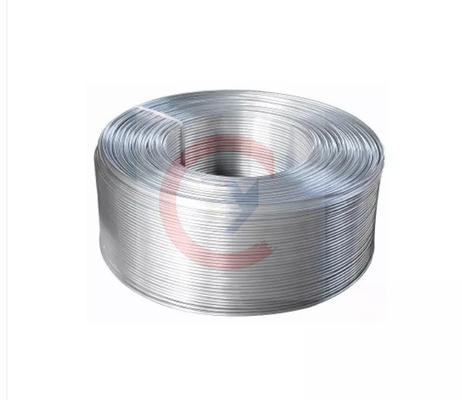

Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA

Place of Origin China
Brand Name Chengyue
Certification ISO9001
Model Number 1060 1070 1100
Minimum Order Quantity 1ton
Price Negotiation
Packaging Details steel strips and pallet according the sea standard
Delivery Time 3-10 days
Payment Terms L/C D/A D/P T/T Western Union MoneyGram
Supply Ability 3000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1100 Aluminum Sheet Grade 1100
Color Silver Ral Or As Request Thickness 0.1-12mm
OD 0.1-150MM Application Air Conditioner Refrigerator
Certification SGS FDA ISO9001 ISO ABS DNV RoHS Inner Package Carton
High Light

Silver 1100 Pure Aluminum Coil Tube

,

Aluminum Pancake Coil SGS FDA

,

LWC Pancake Aluminum Coil Tube

Leave a Message
Product Description



Pure Aluminum 1100 coil tube pancake is used for air conditioning easy to bend





Aluminum coil Pancake 1100 is application on air conditioner, refrigerator, roll-bond evaporator, heat exchanger, oven gas, condenser, and intercooler and so on.

Product Paramenters
Item
Pure Aluminum 1100 coil tube pancake is used for air conditioning easy to bend
Alloy
10501070 1060 1100
3003 3103 3102
6061 6063
Temper
O H112 H14 H16 H22 H24 T3 T4 T5 T6 T7 T8
OD
3.0-40MM for oven 1050 alloy gas aluminium pipe
Wall Thickness
≥0.3MM for oven 1050 alloy gas aluminium pipe
Type
Coil Straight LWC Pancake or customized
Leakage
NO N2 gas keep inside at least 24hours for testing
Application
refrigerator airconditioner evaporator condenser heat exchanger freezer car radiator gas oven HVAC&R system
Standard
GB/T4437.1-2000 ASTM B 241 B-241M-1999
Quality Certificate
ISO9001-2000 RoSH CTI
Tensile strength
68-90Mpa(1000series) 68-105Mpa(3000series)
Elongation
>22%
OEM Accepted
Yes
Certification Available
Yes
MOQ
100kgs(1000series)
100kgs(3000series)
100kgs(6000series)
Packing Details
75x75x30cm carton
6cartons=1wooden pallet
126cartons in 1x20”GP
270catons in 1x40”GP
Production Capacity
500tons month
Payment
L/C T/T D/P D/A Western Union
Delivery
3days(Sample)
6-12days(20GP/40GP/40HQ)
Service
We will reply you in 24hours
Factory Produced
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 0
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 1
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 2
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 3
Product Display
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 4
Commonly Used Aluminum Pipe Coil Specifications
Outer diameter * inner hole * wall thickness (mm) (customization can be supported)
OD 4.0*ID 2.0*THICK 1.0MM
OD 9.52*ID 8.12*THICK 0.7MM
OD 12.7*ID 10.7*THICK 1.0MM
OD 5.0*ID 3.0*THICK 1.0MM
OD 9.52*ID 7.52*THICK 1.0MM
OD 15*ID 13*THICK 1.0MM
OD 6.0*ID 4.7*THICK 0.65MM
OD 10.0*ID 8*THICK 1.0MM
OD 15.88*ID 14.08*THICK 0.9MM
OD 6.0*ID 4.0*THICK 1.0MM
OD 12.0*ID 10.4*THICK 0.8MM
OD 15.88*ID 13.48*THICK 1.2MM
OD 8.0*ID 6.6*THICK 0.7MM
OD 12.0*ID 10*THICK 1.0MM
OD 16.0*ID 14*THICK 1.0MM
OD 8.0*ID 6.0*THICK 1.0MM
OD 12.7*ID 11.1*THICK 0.8MM
OD 19.05*ID 16.65*THICK 1.2MM
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 5
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 6
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 7
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 8
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 9
Product inspection&packaging
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 10
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 11
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 12
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 13
Certifications
Silver 1100 Pure Aluminum Coil Tube LWC Pancake Type SGS FDA 14
FAQ

1. Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with 1.5 million tons of aluminum annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to seeing and inspecting our factory

2. Q: Do you have quality control system?

A: Yes,we have iso,bv,sgs certifications and our own quality contorl laboratory.

3. Q: How long is your delivery time?

A: Within 7-15 days after receiving the deposit or L/C at sight. Longer lead time will be required for special designed products.
4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.
5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
