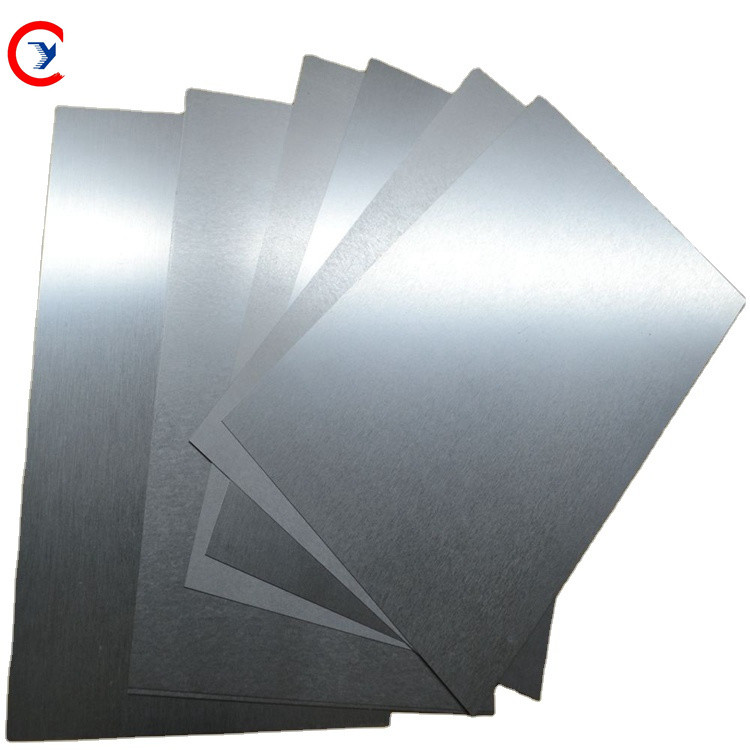

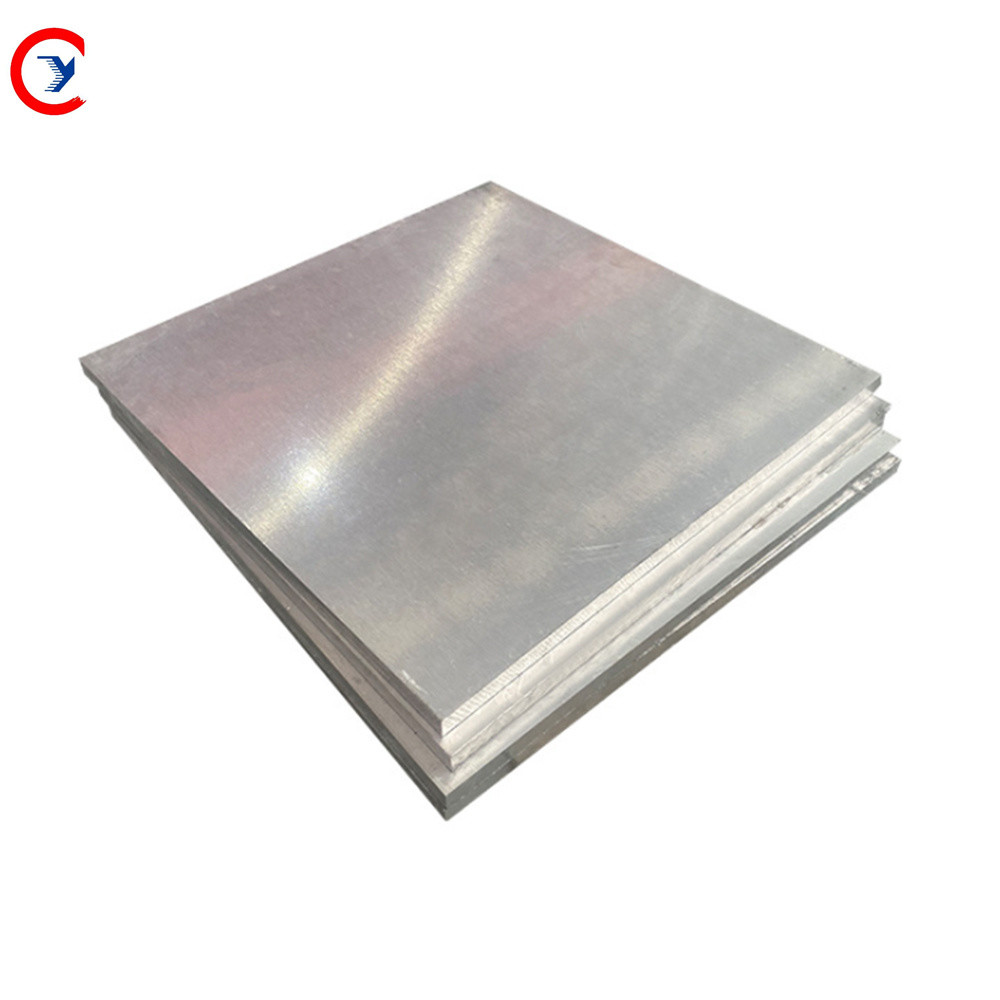

Aircraft Grade 7075 Aluminum Plate Sheet Polished 0.2mm-200mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | chengyue |
| Certification | ISO9001 RoHS |
| Model Number | 7075 |
| Minimum Order Quantity | 1 ton |
| Packaging Details | Waterproof paper, and steel strip packed According to requirements |
| Delivery Time | 6 days |
| Payment Terms | L/C D/A D/P T/T Western Union MoneyGram |
| Supply Ability | 3000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 7075 Aluminum Sheets | Grade | 7075 |
|---|---|---|---|
| Surface Treatment | Coated Embossed Hairline Polished Plain | Width | Customer Requirement 10mm~2500mm 1200mm 500mm-2800mm 600-2000mm |
| Alloy Or Not | Is Alloy Non-alloy | Temper | O-H112,T3-T8,Other,O,T351-T851 |
| Thickness | 0.2mm-200mm 0.15-300 Mm 0.10mm~500mm 0.45MM 0.5mm/1mm/1.5mm / 2mm / 3mm /4mm/5mm/etc. | ||
| Highlight | 7075 Polished aircraft aluminum sheet,Aircraft Grade 7075 Aluminum Plate,0.2mm Thickness aircraft aluminum sheet |
||
Product Description
Aluminum Sheets Aluminum Stock 90% Aluminum Component Al Plate 7075 Aircraft Grade Aluminum
7075 aluminum is composed of 90.0% Al, 5.6% Zn, 2.5%Mg, 0.23%Cr, and 1.6% Cu, though these numbers nominally fluctuate depending upon manufacturing factors. Its density is 2.81 g/cm3 (0.102 lb/in³), which is relatively light for a metal. 7075 aluminum alloy is one of the strongest aluminum alloys available, making it valuable in high-stress situations. The copper content of 7075 aluminum increases its susceptibility to corrosion, but this sacrifice is necessary to make such a strong-yet-workable material.
Applications of 7075 Aluminum
Type 7075 aluminum is one the strongest aluminum alloys. Its high yield strength (>500 MPa) and its low density make the material a fit for applications such as aircraft parts or parts subject to heavy wear. While it is less corrosion resistant than other alloys (such as 5052 aluminum alloy, which is exceptionally resistant to corrosion), its strength more than justifies the downsides. Some major applications of 7075 aluminum alloy include:
- Aircraft fittings
- Gears and shafts
- Missile parts
- Regulating valve parts
- Worm gears
- Aerospace/defense
Product Paramenters
| Mechanical Properties | Metric | English |
| Ultimate Tensile Strength | 572 MPa | 83000 psi |
| Tensile Yield Strength | 503 MPa | 73000 psi |
| Shear Strength | 331 MPa | 48000 psi |
| Fatigue Strength | 159 MPa | 23000 psi |
| Modulus of Elasticity | 71.7 GPa | 10400 ksi |
| Shear Modulus | 26.9 GPa | 3900 ksi |
7075-t651 Chemical Composition
| Range | Si | Fe | Cu | Mn | Mg | Cr | Zn | Each | total | Aluminum |
| Min. | - | - | 1.2 | - | 2.1 | 0.18 | 5.1 | - | - | Remainder |
| Max. | 0.4 | 0.5 | 2.0 | 0.3 | 2.9 | 0.28 | 6.1 | 0.05 | 0.15 |
7075 Aluminum Plate Specifications
|
Tensile Strength Rm(Mpa) |
Yield Strength Rp0.2(Mpa) |
Elongation (%) |
| 524~572 | 445~503 | Min.12.0 |
Aluminum Plate 7075-t651 Specification
| Alloy Series | Typcial Alloy | Typcial Tempe |
Thickness (MM) |
Width (MM) |
Length (MM) |
| 7series | 7075 | T351,T651,T451,T751 | 4-16 | 900-2600 | 1000-2400 |
| 16-260 | 900-3800 | 1000-38000 |
