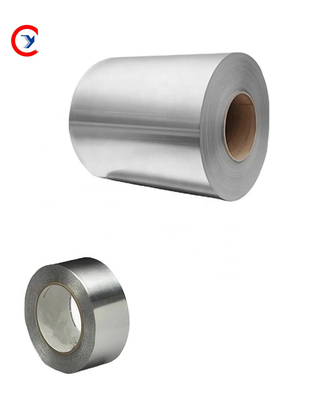

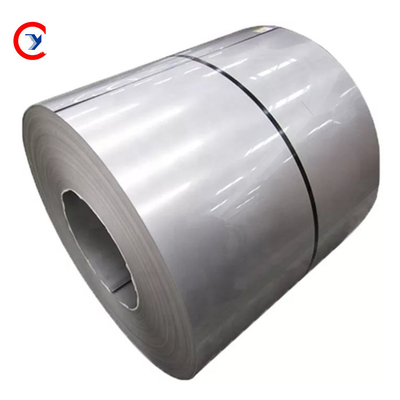

Color Coated Prepainted Aluminum Coil Rolls 1050 1060 3003 3105
| Place of Origin | China |
|---|---|
| Brand Name | chengyue |
| Certification | ISO9001 RoHS |
| Model Number | 1000 3000 5000 6000 series |
| Minimum Order Quantity | 1 ton |
| Packaging Details | Waterproof paper and steel strip packed According to requirements |
| Delivery Time | 6-8 Days |
| Payment Terms | L/C D/A D/P T/T Western Union MoneyGram |
| Supply Ability | 3500 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 1000 3000 5000 6000 Series | Temper | O,H12 H14 H16 H18 H19 H22 H24 H26 H28 H112 |
|---|---|---|---|
| Application | Construction Building Decoration Roofing Ceiling | Type | Coil Roll Coil Plate Roll Coil Plate Roll Sheet Aluminum Coil Aluminum Strip |
| Standard | ASTM AISI JIS DIN GB ASTM-B209 | Package | Wooden Pallet Or As Customer's Requirement Wooden Pallet Standard Seaworthy Package |
| Thickness | 0.1mm-6.5mm | Surface | Light Is Flat And Level |
| High Light | Color Coated Prepainted Aluminum Coil,3003 3105 colored aluminum rolls,1050 1060 Prepainted Aluminum Coil |
||
Product Description
1050 1060 3003 3105 Prepainted Color Coated Aluminum Coil For Construction
All-aluminum coils prevent formicary corrosion and will not rust as much over time like copper. The aluminum coils are also more resistant to pinhole leaks giving a longer lifespan to your HVAC system.
6061 aluminum plate is one types of the 6 series aluminum plates. 6061 aluminum alloy is an alloy in the wrought aluminum-magnesium-silicon series (6000 or 6xxx series). It is much more closely related to 6063 alloy than to 6061 alloy. The main difference between 6061 and 6063 is that 6063 has a slightly higher magnesium content. It can be formed by extrusion, forging or rolling, but as a wrought alloy, it is not used for casting. It cannot be work hardened, but is usually heat treated to produce a temper with higher strength but lower ductility.
Product Paramenters
| 1)1000 Series Alloy (Generally called commercial pure aluminum,Al>99.0%) | |
| Purity | 1050 1050A 1060 1070 1100 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/ H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤30mm; Width≤2600mm; Length≤16000mm OR Coil (C) |
| Application | Lid Stock, Industrial Device, Storage, All Kinds of Containers, etc. |
| Feature | Lid Shigh conductivity, good corrosion resistant performance, high latent heat of melting, high-reflectance, well welding property, low strength, and not suitable for heat treatments. |
| 2)3000 Series Alloy (Generally called Al-Mn Alloy, Mn is used as main alloy element) | |
| Alloy | 3003 3004 3005 3102 3105 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/ H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤30mm; Width≤2200mm Length≤12000mm OR Coil (C) |
| Application | Decoration, heat-sink device, external walls, storage, sheets for construction, etc. |
| Feature | Good rust resistance, not suitable for heat treatments, good corrosion resistant performance, well welding property, good plasticity, low strength but suitable for cold working hardening |
| 3)5000 Series Alloy (Generally called Al-Mg Alloy, the Mg is used as main alloy element) | |
| Alloy | 5005 5052 5083 5086 5182 5754 5154 5454 5A05 5A06 |
| Temper | O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
| Application | Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, Automobile Body Sheets, Automobile Inside Board, The Protective Cover On Engine. |
| Feature | All the advantages of normal aluminium alloy, high tensile strength & yield strength, good corrosion resistant performance, well welding property, well fatigue strength, and suitable for anodic oxidation. |
| 4)6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements ) | |
| Alloy | 6061 6063 6082 |
| Temper | O F, etc. |
| Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
| Application | Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components, Transport Ship, Semiconductor Equipments, etc |
| Feature | Good corrosion resistant performance, well welding property, good oxidability, easy to spray-finishing, well oxidation coloring, good machinability. |
Factory Produced
Product Display
Product packaging
Applications
Certifications
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 1.5 million tons of aluminum annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to seeing and inspecting our factory
2. Q: Do you have quality control system?
A: Yes,we have iso,bv,sgs certifications and our own quality contorl laboratory.
3. Q: How long is your delivery time?
A: Within 7-15 days after receiving the deposit or L/C at sight. Longer lead time will be required for special designed products.
4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.
5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
